Individual coolant filtration system

• Product catalog (PDF:5.77MB)

Supports a wide range of processes in grinding magnetic workpieces with water-soluble coolant.

Major machines

Consumable-less filtration system for magnetic separator and cyclone separator.
Achieve high-precision filtration and stable operation by equipped as standard with an oil cooler, agitator, and highly durable pump.
Further functions can be added by selecting an option.

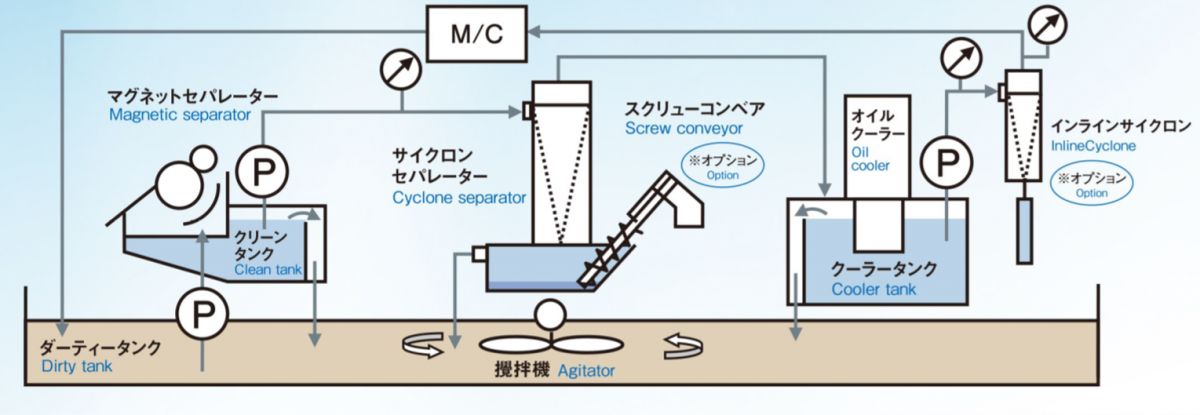

Basic flow diagram

Features

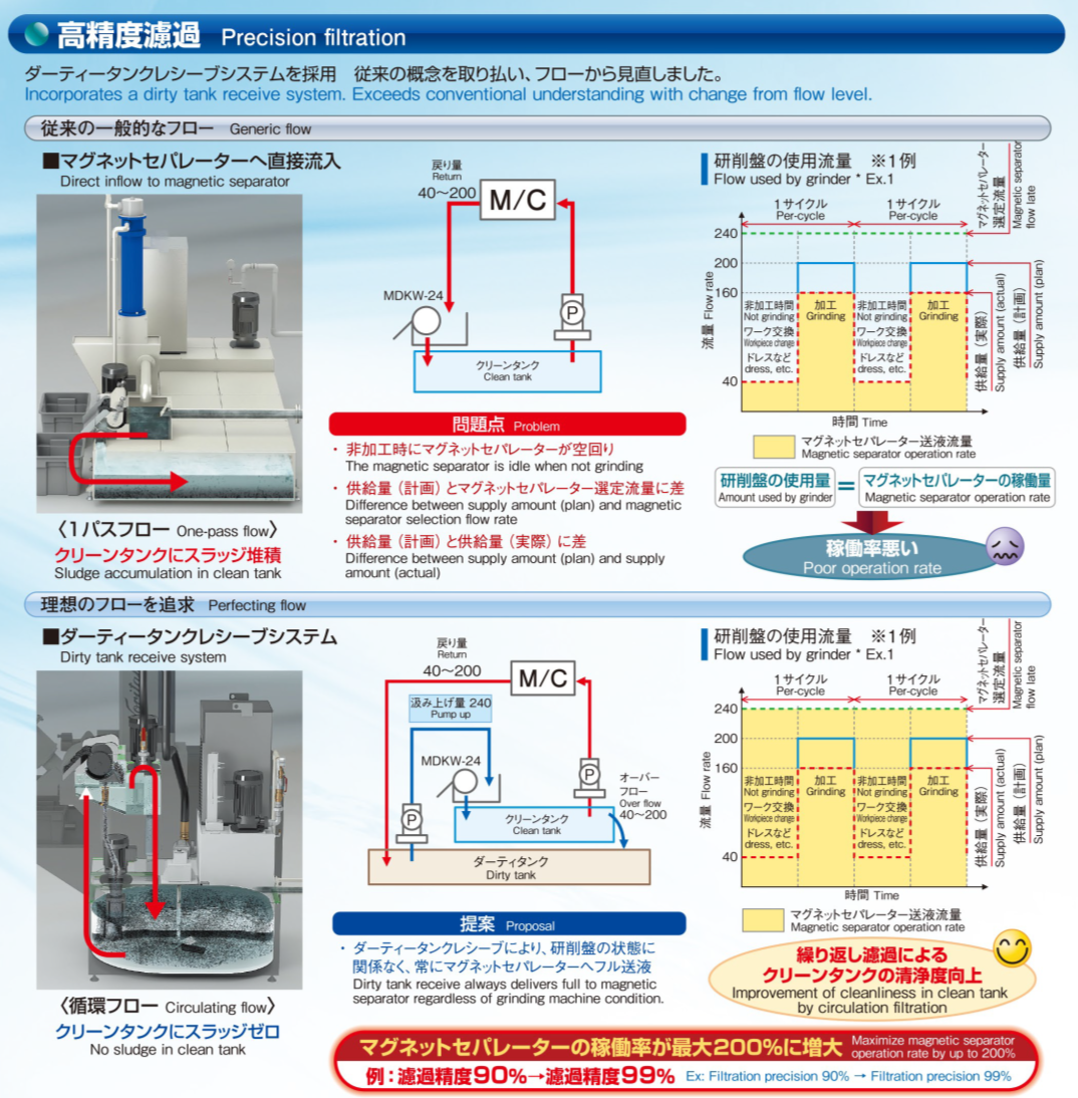

Dirty tank receive system(DTRS) pursuing high-precision filtration

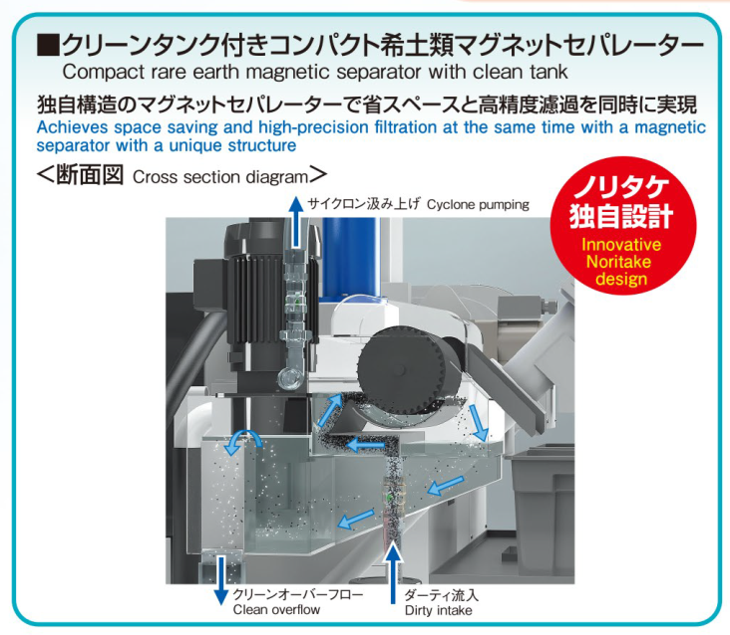

Compact rare earth magnetic separator with clean tank

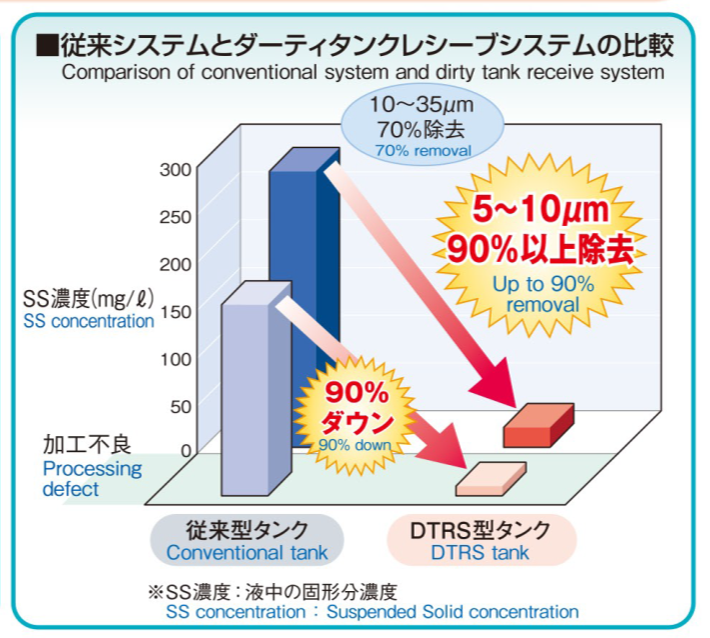

Comparison of conventional system and dirty tank receive system

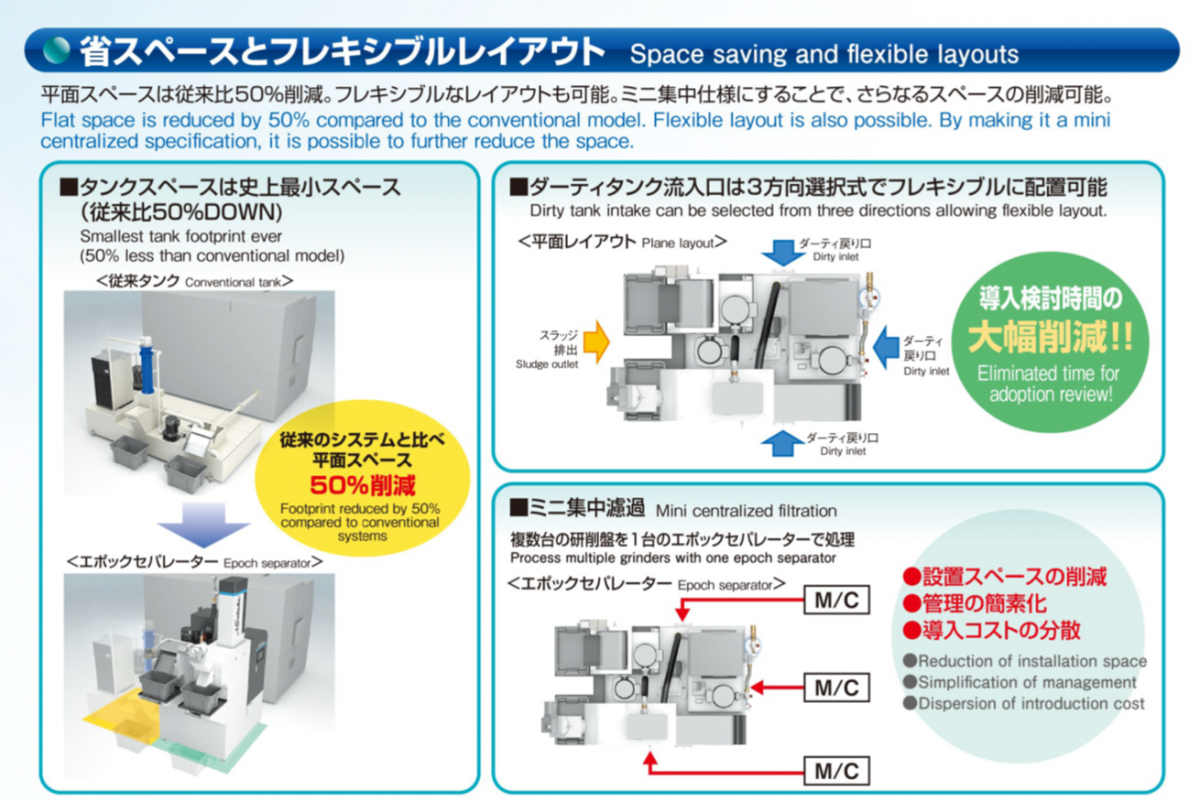

Space saving and flexible layouts

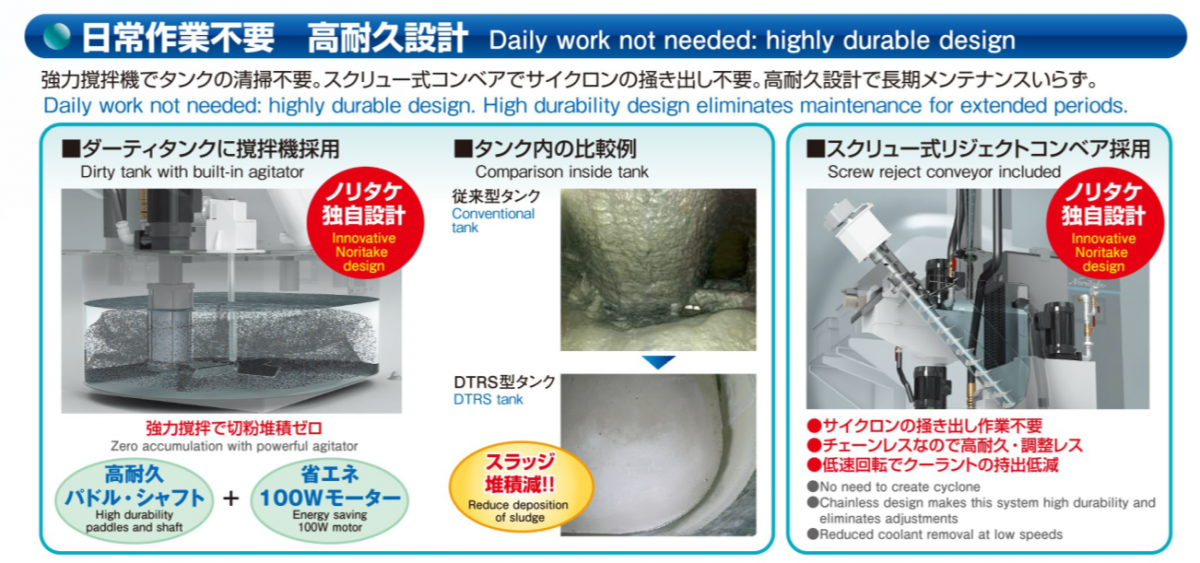

Daily work not needed : highly durable design

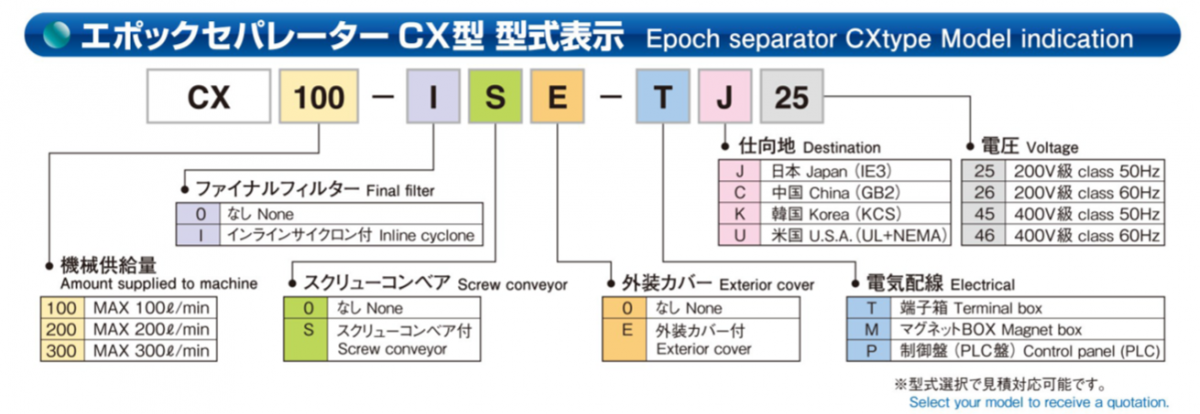

Model indication

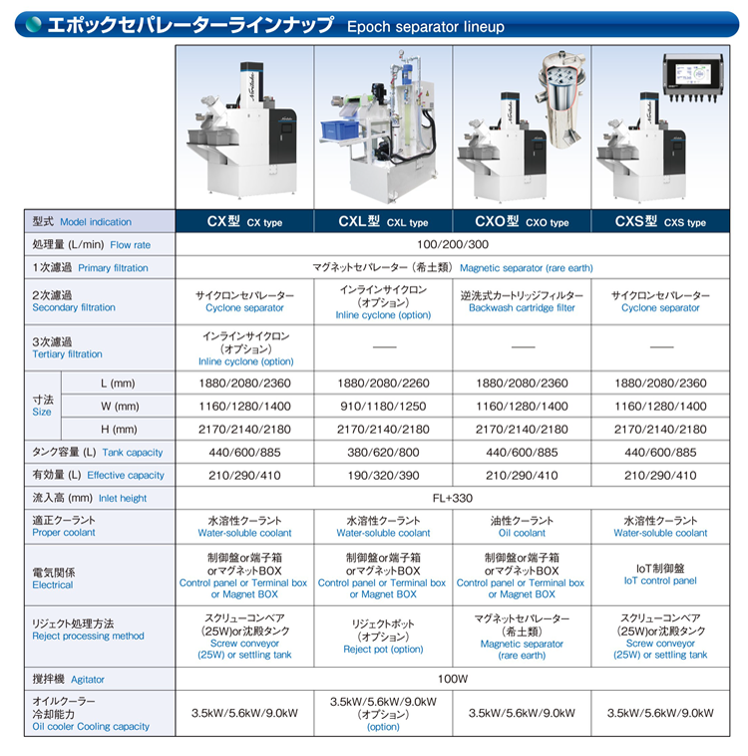

Lineup
