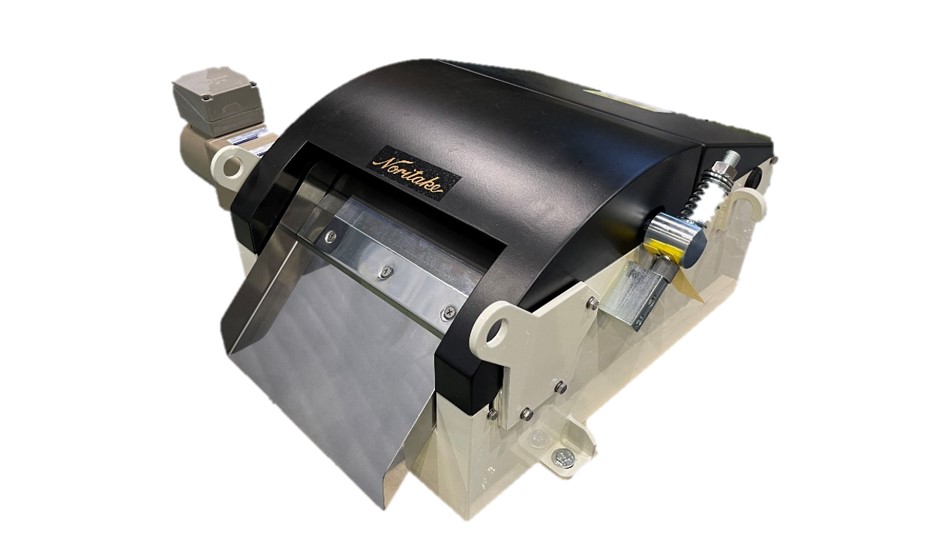

MGK (Ultra-High-Precision Type)
Engineering
-
Heating Furnaces / Kilns
- Heating Furnaces / Kilns List
-
Drying Furnace
- Drying Furnace List
- Batch Kiln
- Far Infrared Conveyer Furnace
- Other Drying Furnaces
- Roll to Roll Far-infrared Heating Furnace
- Far Infrared Heater
-
Firing Kiln
- Firing Kiln List
- Roller Hearth Kiln
- Pusher Kiln
- Rotary Kiln
- Other
- Batch Kiln
- Refractory
-
Search by industry or usage
- Search by industry or usage List
- Semiconductors
- Energy
- Electronics
- Automobiles
- Displays and lighting
- Other
- Furnace Construction Maintenance
-
Mixing Technology
- Mixing Technology List
-
SM Engineering Equipment
- SM Engineering Equipment List
-
Heating and Cooling Systems
- Heating and Cooling Systems List
- Saccharification system for bio-ethanol production
- Adhesive Temperature Adjusting System
- Coating Liquid Precision Temperature (viscosity) Adjusting System
- Scrambled Eggs Continuation Manufacturing System
- Condiment Miso Heat Sterilization System
- Starch Gelatinization System for Paper Manufacturing
- Flour Paste Manufacturing System
- PVA Continuous Dissolution System
- Seasoning Liquid Heating Sterilization Cooling System
- Automated Oxidized Starch Production System
- In-line Starch Saccharification System
- Water Heating System
- Mixing Systems
- Powder and Liquid Dispersion System
- Reaction System
- Laboratory Test Systems
-
Heat Exchangers
- Heat Exchangers List
- Heat Exchangers
- Reaction
-
Static Mixer (SM)
- Static Mixer (SM) List
- Gas absorption(Option)
- Homogenization
- Miixing
- Option Parts
- Cooker / Steam Mixer
- Cutting Machine (Thin Cut Master : TCM)
-
Filtration Systems
- Filtration Systems List
- Search lubricants
-
Coolant Filtration Systems
- Coolant Filtration Systems List
- Centrifuge
- Magnetic Separator
- Cyclone Separator
- Paper Filter
- Backwash Filter
- Search by industry or usage
- Search filtration materials
- Filtration Related Systems
- Ceramic filter
- Technical Support
- Catalog Download
- About Our Sales Offices
High Removal Efficiency — even with Oil-Based Coolants
Features
High-Precision Filtration
The redesigned magnetic drum significantly improves fine-particle removal efficiency.
Powerful Dewatering
The newly designed rubber roller minimizes sludge buildup and wraparound.
Ultra-Low-Profile Design
The dirty-fluid return height is among the lowest in the industry, allowing greater flexibility in equipment layout.
Leak Prevention
An optional liquid-level sensor can be installed on the side of the inlet tank.
High Durability
The outer shell of the magnetic drum is surface-hardened, significantly reducing wear caused by abrasive grains.
Oil-Based Coolant Compatibility
The MGK delivers high removal efficiency even with oil-based coolants, which are generally more difficult to filter effectively.

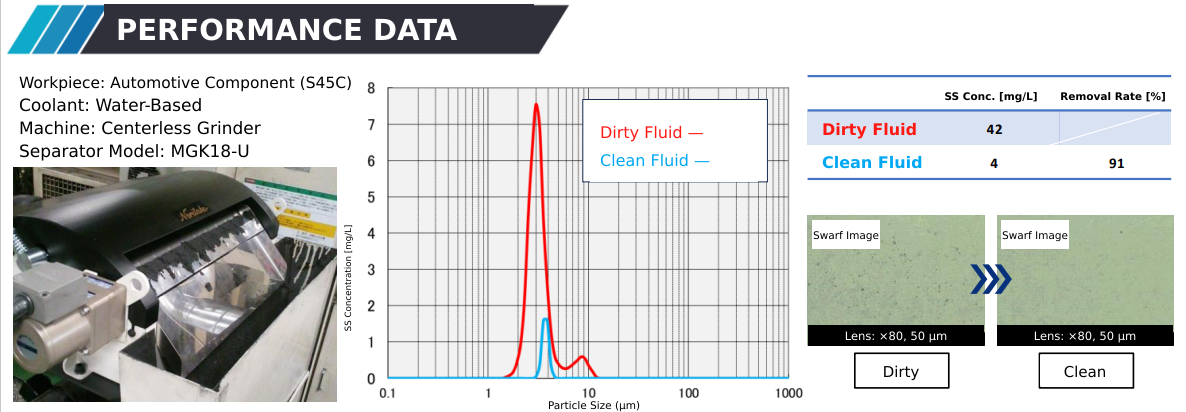

Performance Data
Applications
・Grinding and polishing of magnetic metals
・Polishing of rolled steel sheets
・Sludge removal from pre-painting cleaning solutions
・Removal of burrs and other contaminants from forging oils
・Removal of scale generated during quenching
・Secondary filtration in cutting operations
・Sludge removal from parts-cleaning fluids
・Recovery of magnetic powders for reuse as raw materials

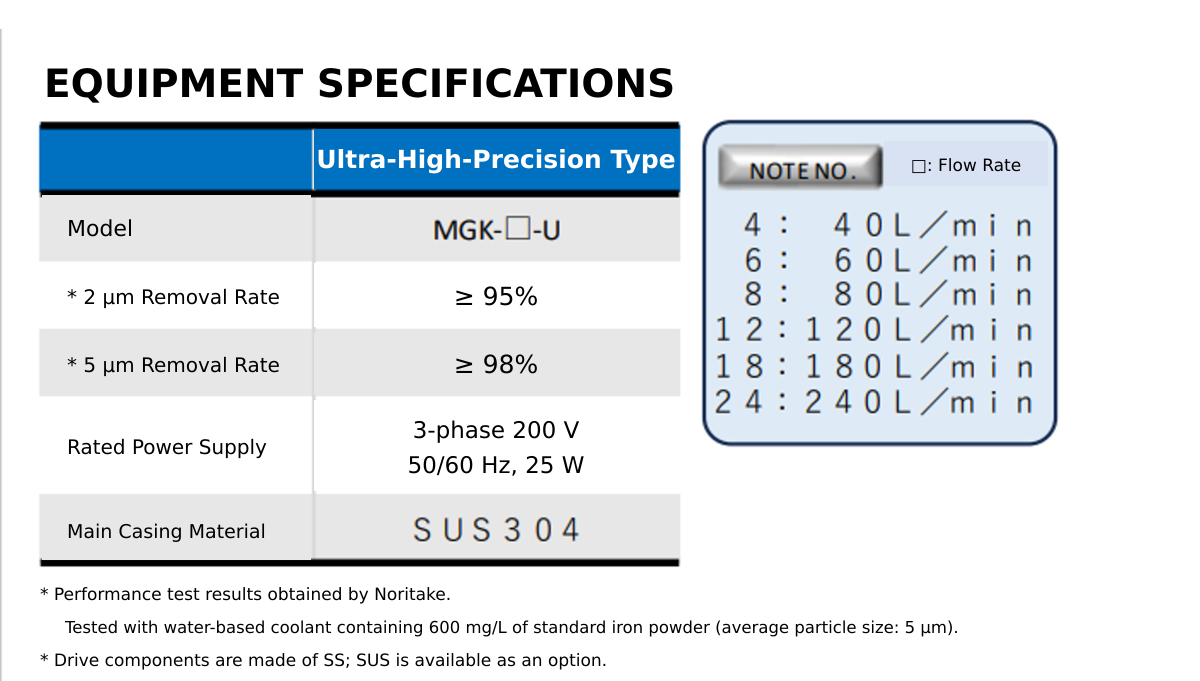

Equipment Specifications

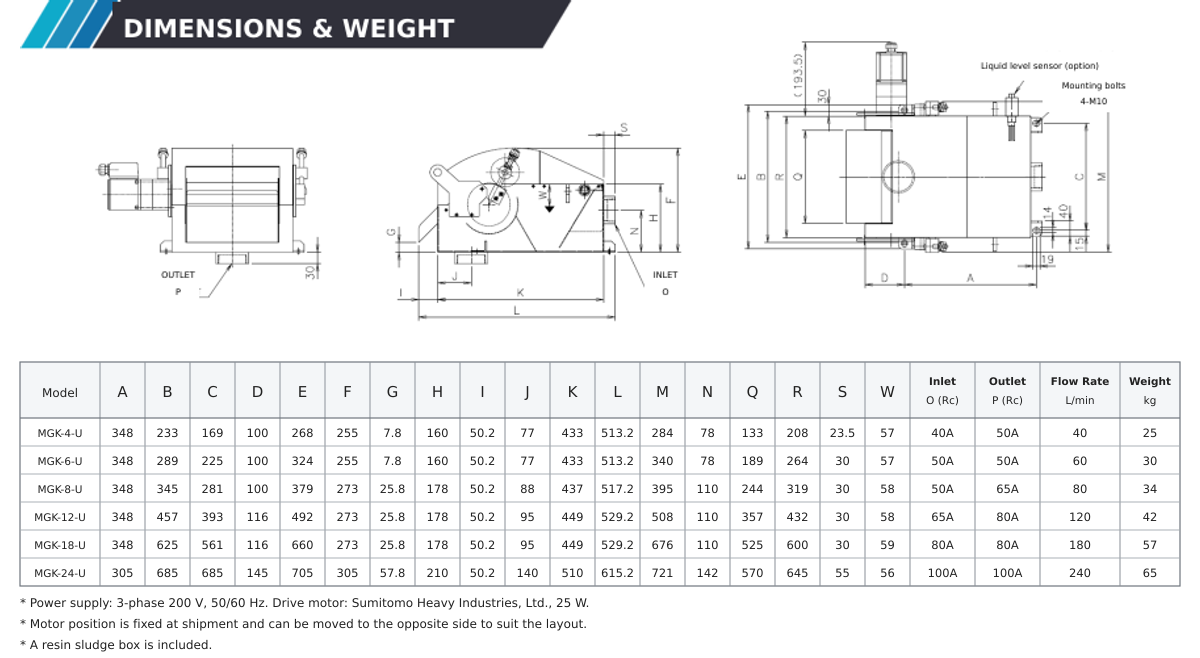

Dimensions and Weight
For more information about this product or to request a quotation, please contact us using the inquiry form below.
